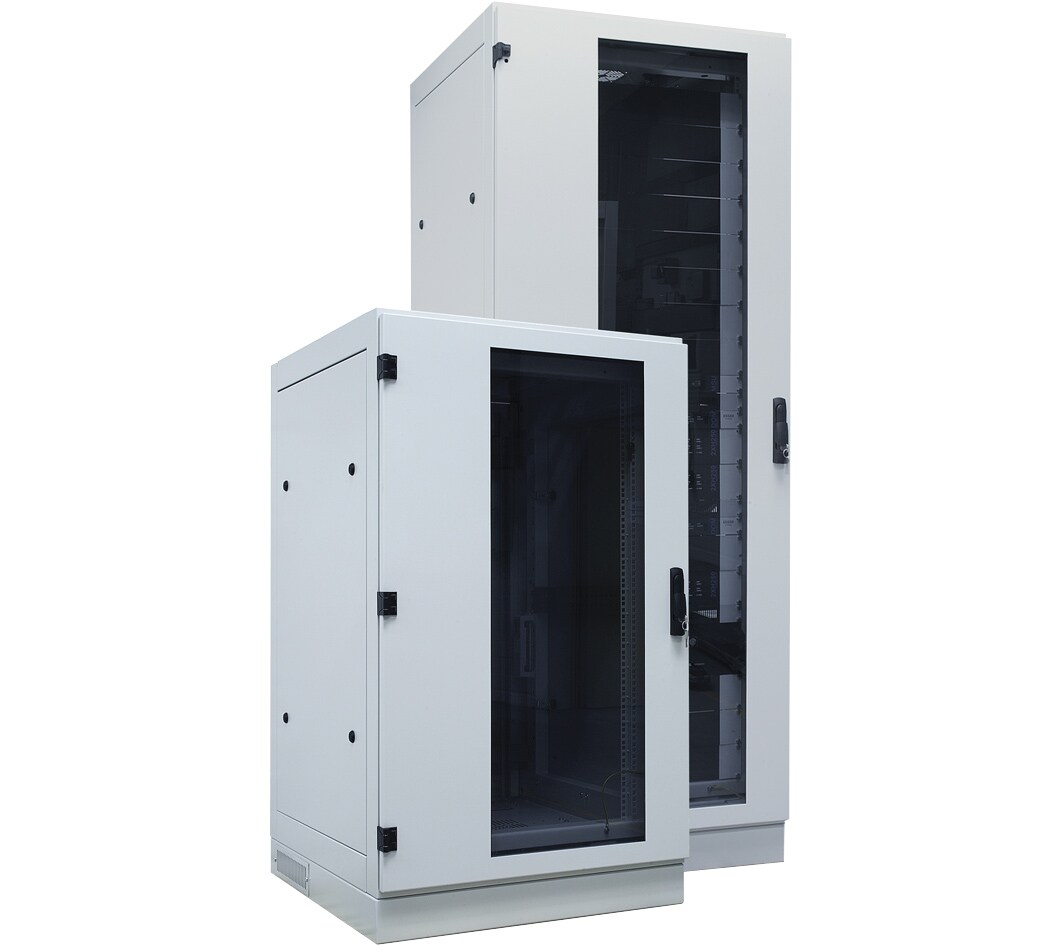

Upright cabinet without hinged frame, 42 HU

584911

Approval: G 210122

Due to customized preparation and quick installation this cabinet solution meets the demand for fast implementation of a network structure.
  • Reversible door hinge
  • Completely detachable

Scope of Delivery:
Base frame with depth-adjustable level on the front and rear side, prefabricated with a 105 mm clearance to the doors Front door with a 4 mm ESG pane (parsol gray) Rear door steel plate Door lock with a swivel lever for 40 mm PHZ and multi point locking Removable side walls, lockable Three-part base plate, passively ventilated Roof with a brush strip and cover plate, prefabricated for the fan assembly Cabinet completely grounded
Colorgrey, similar to RAL 7035
Weight kg approx. 150 kg
Channel separation> 75 dB
Harmonic distortion at nominal level@ 1 kHz
Maximum weight load400 kg
Type of protectionIP 40
DimensionsW: 800 mm H: 2100 mm D: 800 mm (H: incl. 100 mm base)
  • 584923 Sliding rail, 800 mm
