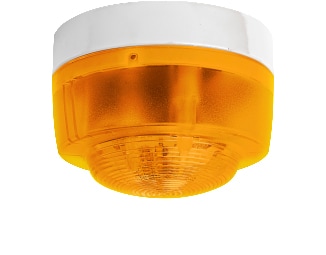

Optical alarm signaling device, amber flash

CWST-WA-S7

Optical alarm device for wall and ceiling mounting with amber signal flash and flat base.
The device does not comply with EN 54-23.

  • Flat design
  • Synchronous flash trigger
  • Low alarm power

Additional Information:

Not suitable for use outdoors or in damp areas. Please use therefore the optional bases and accessories (Part No. CWW, PS188, PS189). Replacement for Part No. 766411.

Operating voltage 12 ... 29 V DC
Current consumption @ 24 V DC
approx. 3 mA (@ DIN tone)
Frequency of flash approx. 0.5 Hz
Flash Color yellow
Ambient temperature
-25° C ... 70° C
Air humidity <96 % (non-condensing)
Type of protection IP21C, IP65 with CWW and accessories
Material PC/ABS, UL94-V0
PC, UL94-V0 (Lens)
Color base: white, similar RAL 9003
cap: amber
Weight approx. 164 g
Dimensions
Ø: 100 mm H: 72 mm
Ø: 100 mm H: 97 mm (incl. IP base)
  • CWW Base deep IP 65, white
  • PS188 Base deep, O-Ring
  • PS189 Base deep, seal
