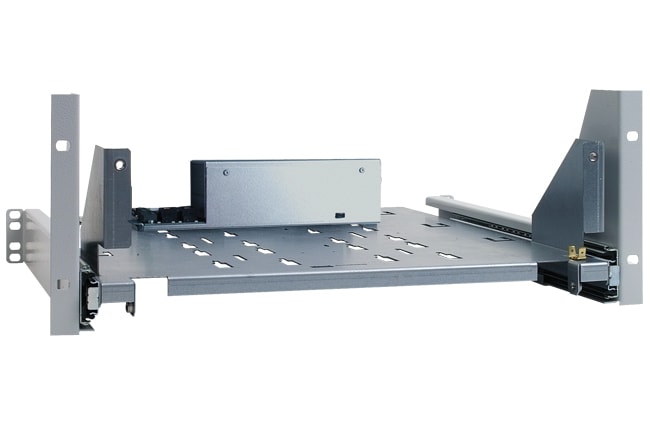

Heavy-duty drawer with power supply unit, 5 HU

FX808431

Heavy-duty drawer on ball-bearing metal rails with power supply module and space for up to four batteries 12 V / 26 Ah.
Additional Information:

Dummy cover (Part No. FX808440) must be ordered separately.


Scope of Delivery:
1 x Mains adapter connection cable
2 x Battery connection cables
2 x Fasteners
1 x Power supply module (PSM) FX808326, 24 V DC / 150 W with PSM connector cable
1 x Power supply connection (PSC) FX808327

Rated voltage 230 V AC
Rated frequency 50 ... 60 Hz
Rated current 0.8 A
Output voltage 24 V DC
Output current max.6 A
Current consumption for ext. devices 3 A
Battery capacity 2 x 12 V / 26 Ah (max. 4 x 12 V 26 Ah)
Color gray, similar to Pantone 538
Housing ABS, 10 % glass fiber reinforced, V - 0
Weight kg approx. 10.3 kg
Storage temperature -10 °C ... 50 °C
Type of protection IP30
Ambient temperature -5 °C ... 45 °C
Dimensions W: 450 mm H: 640 mm D: 185 mm
