External thermal printers RS485

FX808353

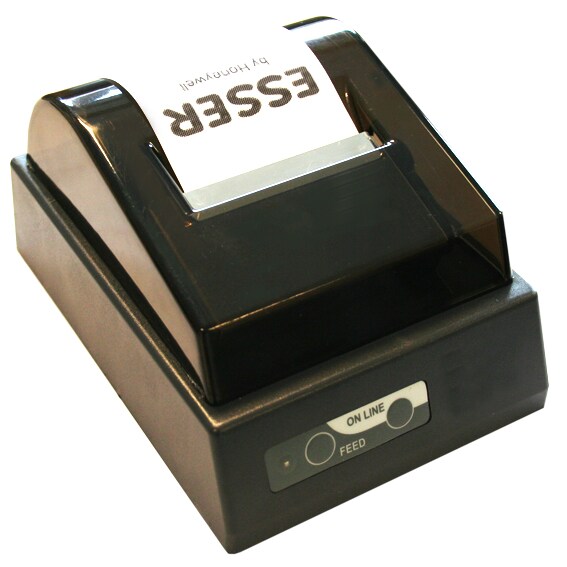

Continuous printer as a parallel recording device for a FlexES Control fire alarm control panel (FACP). Power is supplied via an external power adapter.
The printer can be mounted as a table top or wall mounted version next to the FACP. The enclosed ready-to-use cable is used to connect the printer to the RS422/485 interface of the FlexES Control.

Scope of delivery:
1 x interface cable
1 x power supply cable (length: 1.5 m)
1 x roll of thermal paper
1 power supply

Rated voltage 230 V AC
Operating voltage 12 ... 24 V DC
Weight approx. 0.55 kg
Rated frequency 50 ... 60 Hz
Quiescent current @ 12 V DC approx. 4 mA
Current consumption @ 24 V DC approx. 900 mA (during continuous printing)
Dimensions W: 110 mm H: 85 mm D: 155 mm
  • FX808355 Thermal paper 57 mm x 30 m
