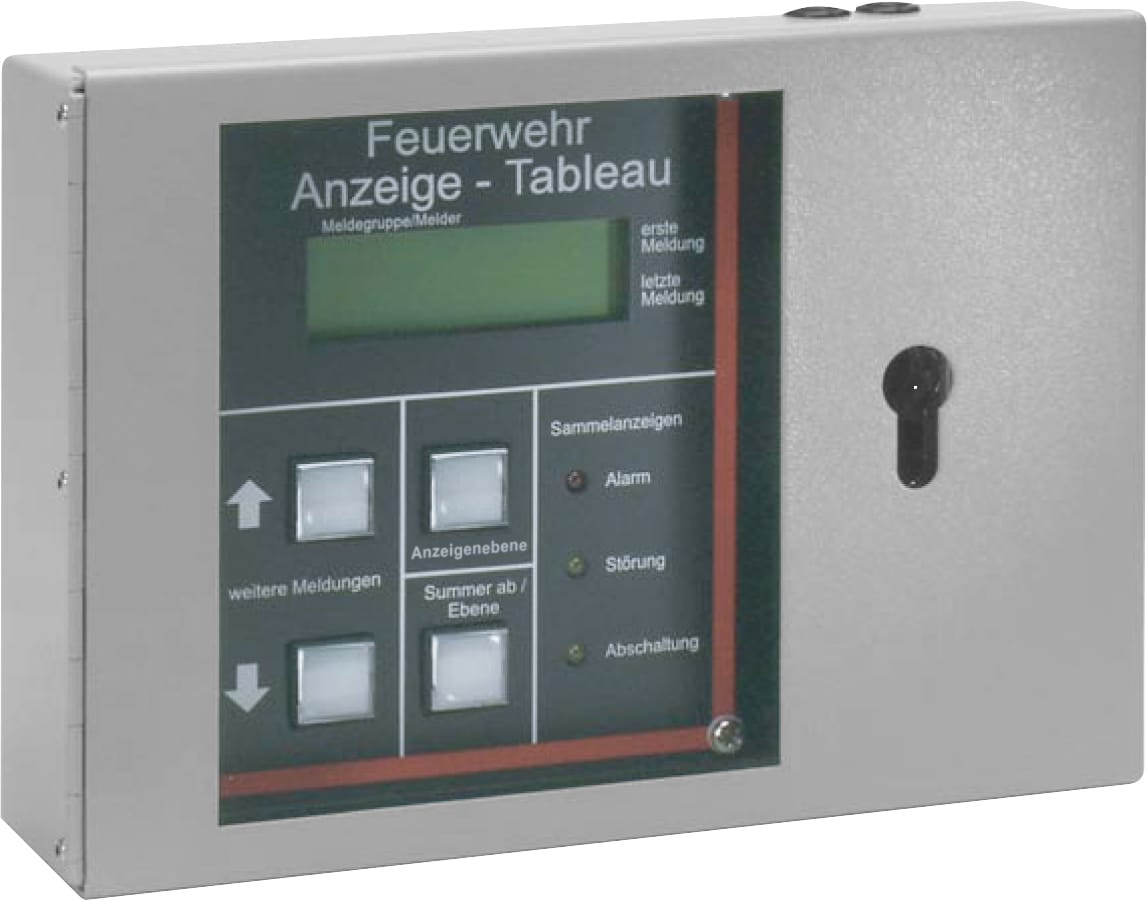

Fire brigade indicating panel FAT 3000-EDP protocol, Czech

FX808380.CZ

Approval: VdS

Microprocessor-based fire brigade indicating panel according to DIN 14675 as an additional alarm device for a FlexES fire detection panel. Serial connection to the fire alarm panel via the RS 485 interface. In addition, a serial fire brigade indicating panel can be connected via an RS 232. Conventional as well as redundant operation is possible via ADP-N3E adapters according to DIN 14675. The collective indicators and operating keys enable the fire brigade to receive a comprehensive overview of the on-site situation. Up to 4,000 PC-programmable supplementary texts, event memory and the possibility of a short-circuit and interruption-tolerant loop installation guarantee superior safety levels. The ESPA interface facilitates a direct connection which is not galvanically separated to a telecommunication system or paging system. Compliant with DIN 14662: Z-2012.

Features & Benefits
Technical Data
Accessories
Documents

Alarm current @ 24 V DC	approx. 60 mA
Operating voltage	10 ... 30 V DC
Color	gray, similar to RAL 7032
Housing	sheet steel
Weight kg	approx. 3.5 kg
Quiescent current	approx. 40 mA
Quiescent current @ 24 V DC	approx. 40 mA
Type of protection	IP 30
VdS-Nr	G 205076
Dimensions	W: 255 mm H: 185 mm D: 58 mm

Austria	German
Czech Republic	Czech
Poland	Polish
Romania	Romanian
Russia	Russian
Slovakia	Czech
Turkey	Turkish
Ukraine	Russian
