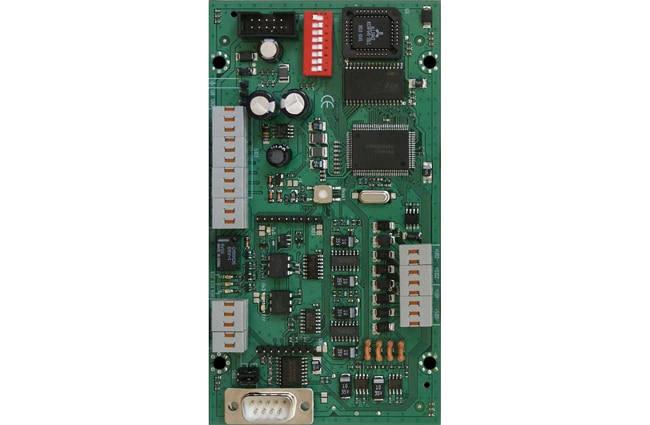

Adapter module ADP-N3EU-EDP

FX808381

Microprocessor-based device for installation in FlexES fire alarm panel. In compliance with DIN 14675, the TTY interface of the fire alarm panel can be used as a redundant data bus with this adapter if the fire brigade indicating panel FAT 3000 is used for the fire brigade’s initial information. Supplementary texts can be programmed via PC (> 4,000 texts).

The ESPA interface facilitates a direct connection which is not galvanically isolated to a telecommunication system, paging system or nurse call system.

Features & Benefits
Technical Data
Accessories
Documents

Input: EDP protocol
Output: ESPA protocol

Connection terminal	max 2 x 0.8 mm²
Operating voltage	10 ... 30 V DC
Weight	approx. 100 g
Contact load relay	30 V DC/ 1 A
Storage temperature	-10 °C ... 60 °C
Quiescent current	approx. 40 mA
Ambient temperature	0 °C ... 50 °C
Dimensions	W: 80 mm H: 150 mm D: 32 mm
