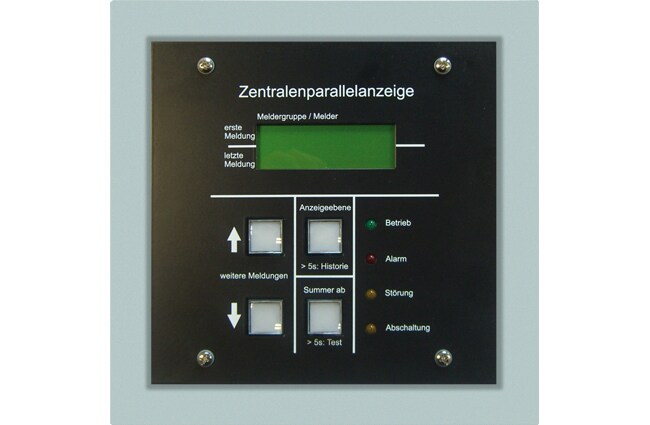

Central remote indicator ZPA 3000, flush mount, Czech

FX808385.CZ

Central remote indicator in aesthetic surface-mounted plastic housing as additional display for the fire alarm system. Connection to FlexES Control is made via a serial interface of the FACP. Plain text message with a capacity of 4 lines with 20 characters each is possible. Two messages can be displayed simultaneously. 4,000 texts (1,300 in selective mode) are programmable. If no additional texts are configured, a standard text will be generated.

One ZPA 3000 can be connected to each FlexES interface RS 485, so in total two ZPA 3000 per FlexES FACP are possible.

Optionally: up to 16 ZPA 3000 connected via adapter module ADP-N3

As FX808384 but flush-mounted version and with Czech operating front.

Features & Benefits
Technical Data
Accessories
Documents

Alarm current @ 24 V DC	approx. 75 mA
Operating voltage	10 ... 30 V DC
Weight	approx. 3,5 kg
Cable length	700 m
Quiescent current @ 24 V DC	approx. 45 mA
Dimensions	W: 193 mm H: 190 mm D: 60 mm (installation) W: 230 mm H: 230 mm D: 60 mm (outside)

Austria	German
Czech Republic	Czech
Poland	Polish
Romania	Romanian
Russia	Russian
Slovakia	Czech
Turkey	Turkish
Ukraine	Russian
