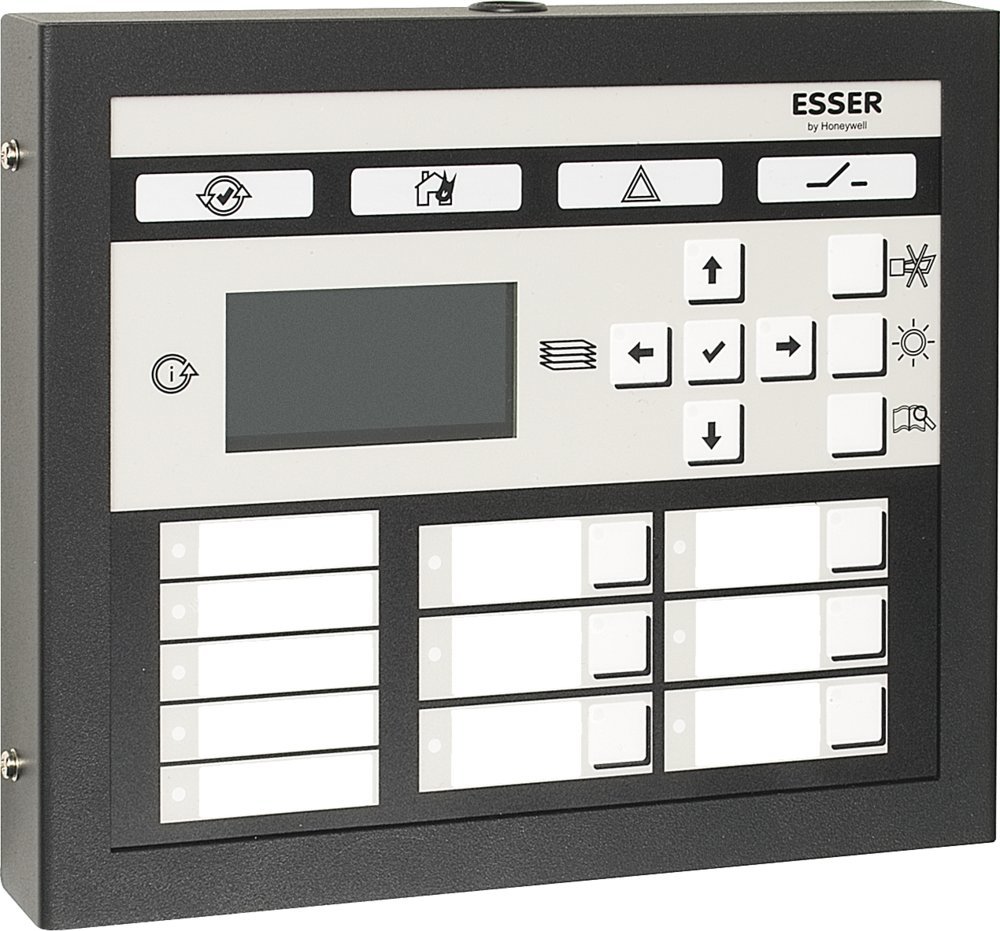

Repeater panel GMT 4000 for FlexES Control and IQ8 Control, surface mounted

FX808464

The repeater panel GMT 4000 is a parallel display and control unit for the FACP FlexES Control and IQ8 Control. Individually programmable control buttons and LED indicators guarantee remote display and operation adapted to the property-protection objective. Capacitive buttons allow for ergonomic operation and querying of system states. The plain text display of the system status via a graphics-capable, six-line display, with 20 characters per line. Operation functionality may be limited with IQ8 Control FACP.

Features & Benefits
Technical Data
Accessories
Documents

Connection to RS485 or TTY interface (depending on FACP)
Capacitive control panel
Optional for non-redundant or redundant connections
Graphic display with 6 lines of 20 characters each
Additional text is transferred from the FACP
4 buttons for operating the display (scroll up/down, slide right/left)
3 buttons for operating the buzzer: off, test, and history
1 button to confirm selection for special functions
4 LED collective displays (operation, alarm, fault, shutdown)
6 programmable buttons for macro operation that control a configurable series of operating procedures. E.G. MG1 to MG50 on/off.
5 programmable individual displays
Acoustic signaling
History function
Max. 16 devices (depending on interface and FACP)

Additional Information:
GMT 4000 Display languages: German, English, Dutch, Spanish, Portuguese-Brazil, French, Romanian, Russian
Programming Software "Prog4000": German, English, Spanish, Portuguese-Brazil, French, Romanian, Russian

Operating voltage	10 ... 30 V DC
Current consumption @ 24 V DC	approx. 21 mA
Color	gray, similar to RAL 7024
Dimensions	W: 230 mm H: 200 mm D: 70 mm

784716 - ADP 4000 redundancy adapter
784870 - Module with RS232 interface
784871 - Module with RS422/RS485 interface
784872 - Module with interface M4-TTY

Type	Name	Size
Promotional - Product Data Sheets
	GMT 4000_FX808463/FX808464_Product Information_EN_Version:12.2013	2 MB
