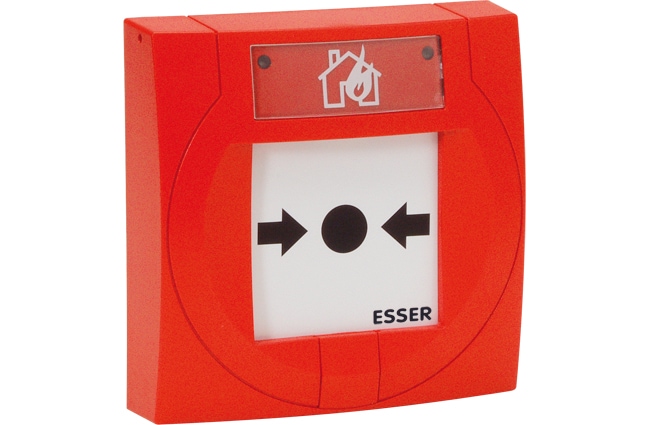

Conventional MCP compact, small, red, glass pane

804970

Approval: VdS, CNBOP

Including housing and alarm indicator. For connection to a conventional detection zone.

Features & Benefits
Technical Data
Accessories
Documents

Scope of Delivery:
1 x Glass pane 704960
1 x Key 704966

1 x Multilingual paper labels with "Out of order" pictogram.

Alarm display	red LED and yellow actuation indicator
Alarm current @ 9 V DC	typ. 9 mA
Connection terminal	max. 2.5 mm² (AWG 26-14)
Application temperature	-20 °C ... 70 °C
Operating voltage	8 ... 30 V DC
Color	red, similar to RAL 3020
Housing	PC ASA plastic
Weight g	approx. 110 g
Storage temperature	-30 °C ... 75 °C
No. of detector/zone	10 detectors per zone (according to VdS)
Detector specification	EN 54-11, type A
Air humidity	< 95 % (non-condensing)
Quiescent current @ 9 V DC	approx. 0 μA
Type of protection	IP43, IP55 with cover 704965
VdS class	F
VdS-Nr	G 205131
Dimensions	W: 88 mm H: 88 mm D: 21 mm

704980 Surface mount housing
