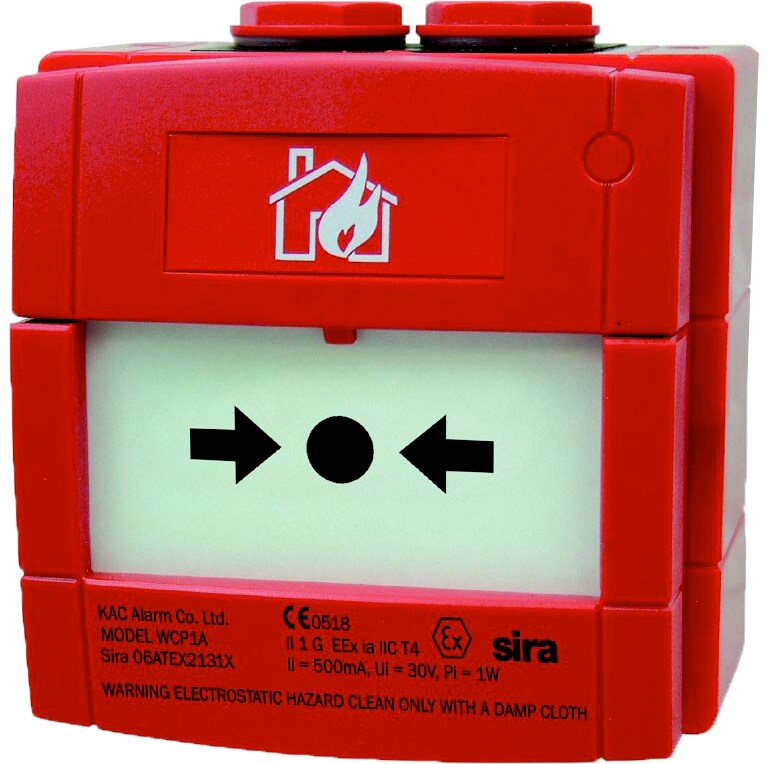

Ex manual call point IP67, small housing, red

W1A-R1K0SG-E019-81

Approval: LPCB, ATEX

The Ex MCP is built especially for installation in hazardous areas. It is intended for outdoor use within intrinsically safe systems using suitable barriers.
The outdoor MCP is an IP 67 sealed product. The enhanced environmental protection allows the unit to be installed in many external environments where water and dirt are likely to be present, making it a true waterproof and outdoor product.
The manual call point has a unique ‘plug and play’ concept designed specifically to reduce installation time. The product utilizes a special terminal block, where all initial installation cabling is terminated. This terminal block is then simply connected to the back of the MCP. The housing is supplied with three standard 20mm knock outs for cable entries, accommodating all types of surface wiring installations.
The MCP also helps to preserve the integrity of the overall system as illegal removal of the product lid will result in the call point operating and the system triggering an alarm.

Features & Benefits
Technical Data
Accessories
Documents

Sealed to IP67
Unique ‘plug and play’ installation concept
Anti-tamper facility
Enhanced aesthetics and compact design
Approved to EN 54-11

Additional Information
! Attention – cable glands not included in delivery.

Application temperature	-25 °C ... 70 °C
Ex-category	Ex-category II 1GD EEXiaIICT
Weight g	approx. 350 g
Data according to ATEX	ATEX certificate Sira 06ATEX2131X
Storage temperature	-25 °C ... 70 °C
Material	PC/ABS
Detector specification	EN 54-11
Air humidity	< 93 % ?3% non condensing
Type of protection	IP67
Dimensions	W: 97.5 mm H: 93 mm D: 71 mm

MUS155 Spare glass plane (5 pcs)
SC070 Spare key
PS200 Plastic cover
764744 Ex-barrier

Type	Name	Size
Declaration of Performance
	DoP_IS WCP Conventional All_Version: 12.2017	822 KB
