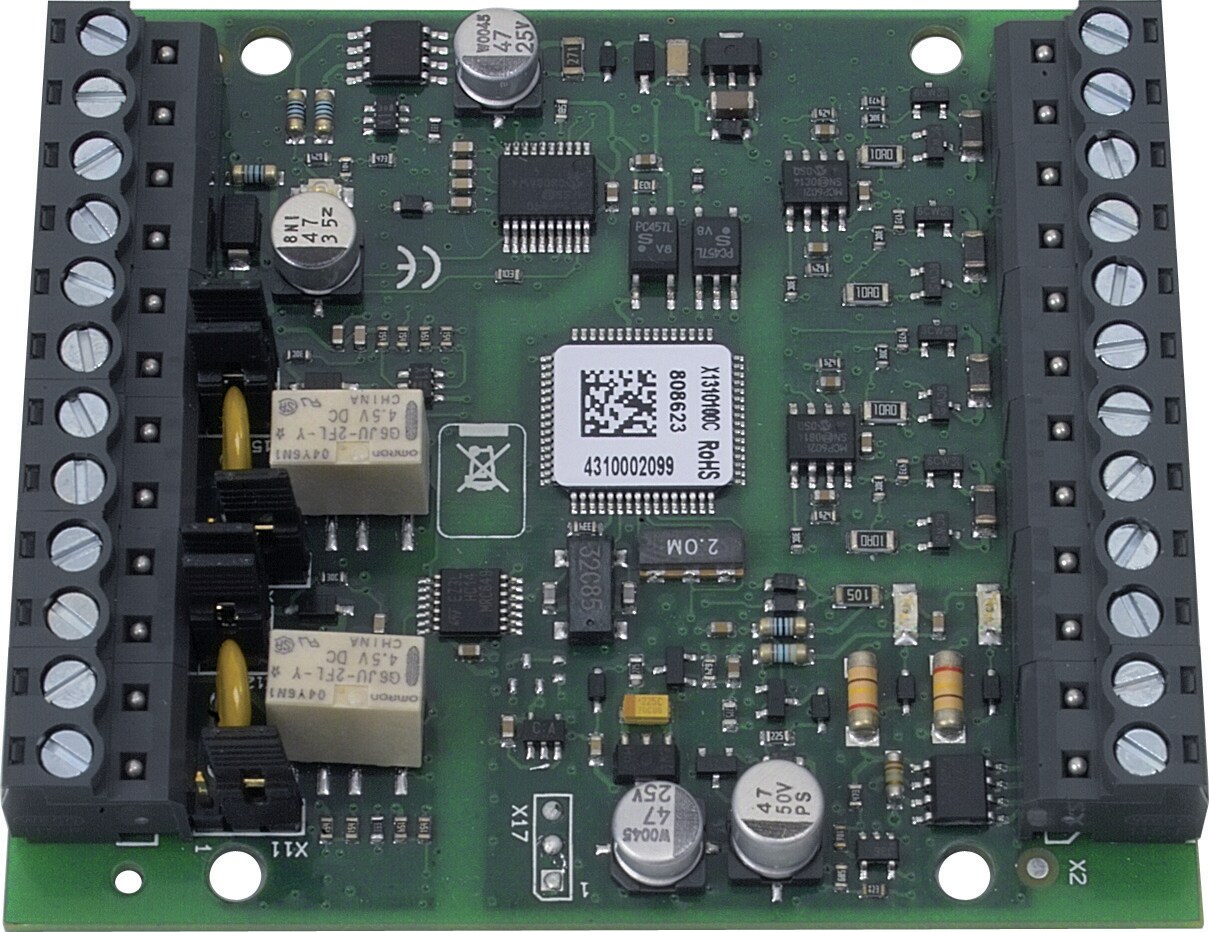

esserbus transponder for UniVario with isolator

808623.10

Approval: VdS

The interface connects max. 2 industrial detectors from the UniVario product range. These detectors are supplied with energy via the 9 V DC group voltage input. For meeting the standard requirements of monitoring, an EOL-UV terminal element is connected to the detector base of the UniVario detector. The interface requires external voltage supply. Additionally, two optionally monitored relay outputs are available.
  • Only one loop address is needed per transponder
  • Digital input
  • Loop monitoring in compliance with EN 54-13
  • Integrated loop isolator
  • Programmable relay outputs
  • Programmable relay reset function
  • Max. 100 transponders per fire alarm control panel
  • Max. 31 transponders per loop
  • Max. 127 detector zones per loop
  • Detector numbers per zone input of the transponder:
  • Max. 30 conventional detectors (without SOC)
  • Max. 10 conventional detectors (with SOC)
  • Max. 10 Manual call points
  • Max. 10 Technical Alarm Modules (TAM)
  • Max. 5 audible alarm device (observe calculation table in tools 8000)


Scope of Delivery:

Installation Accessory Pack: 6x10 K, 4x1 K resistors
Operating voltage10 ... 28 V DC
CE certificate0786-CPD-20947
Weight gapprox. 28 g
Contact load relay30 V DC / 1 A
Storage temperature-25 °C ... 75 °C
Length conductor cable #1max. 1000 m
Air humidity< 95 % (non-condensing)
Relay monitoringEOL-O (or 10 kƒ / ± 40% for unmonitored activation)
Quiescent current @ 12 V DCapprox. 12 mA
Type of protectionIP40 (with housing), IP55 (with high IP housing)
SpecificationEN 54-17 : 2005
Current consumptionmax. 120 mA @ 12 V DC
Ambient temperature-10 °C ... 50 °C
VdS-NrG 210020
DimensionsW: 82 mm H: 72 mm D: 20 mm
