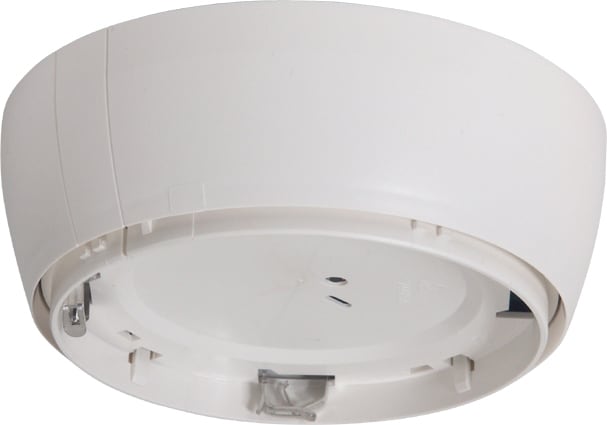

The wireless detector base suitable for:
- Fixed heat detector (Part No. 802171, 802177)
- Rate-of-rise heat detector (Part No. 802271, 803271)
- Optical smoke detector (Part No. 802371, 803371)
- O²T multisensor fire detector (Part No. 802374, 803374)
- OTG multisensor fire detector (Part No. 802473)
The wireless detector base features
- Individual detector identification on the control panel
- Regular functionality check for each detector
- Alarm and operation display on the detector
- Alarm and fault transmission in accordance with EN 54-2
- Easy detector or battery replacement with detector removal tool

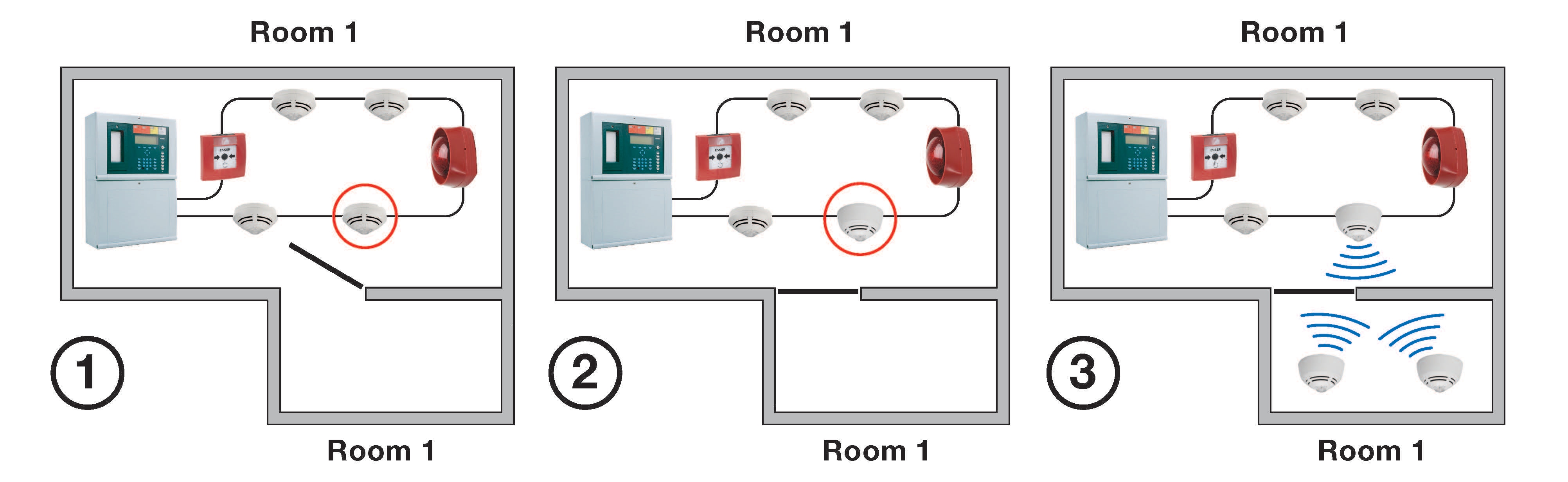

- Fault signal when the mounted wireless base and the inserted detector are removed
- Permanent monitoring of battery voltage
- Up to 3 years battery life depending on detector type and environmental conditions
Additional Information:
The batteries to be used are components of the device approval according to EN 54 and are specified by the manufacturer. With the IQ8Wireless radio components, only the approved batteries with Part No. 805597 may be used. Use of batteries other than those specified by us automatically voids the product’s device approval (VdS-approval) and may not be used for example in Germany in fire alarm systems under legal building regulations.
*The battery operating time is dependent on the type of detector/device used, as well as the application temperature and additional surrounding conditions. It can be substantially reduced by increased current consumption of the wireless devices in the case of alarm, wireless interference or poor transmission, or even possibly through contact resistance at the contacts. Please note important instructions for usage of batteries in manual Part No. 798941.10 (available at the website).
Scope of Delivery:
4 x lithium batteries 3.6V (Part No. 805597)
