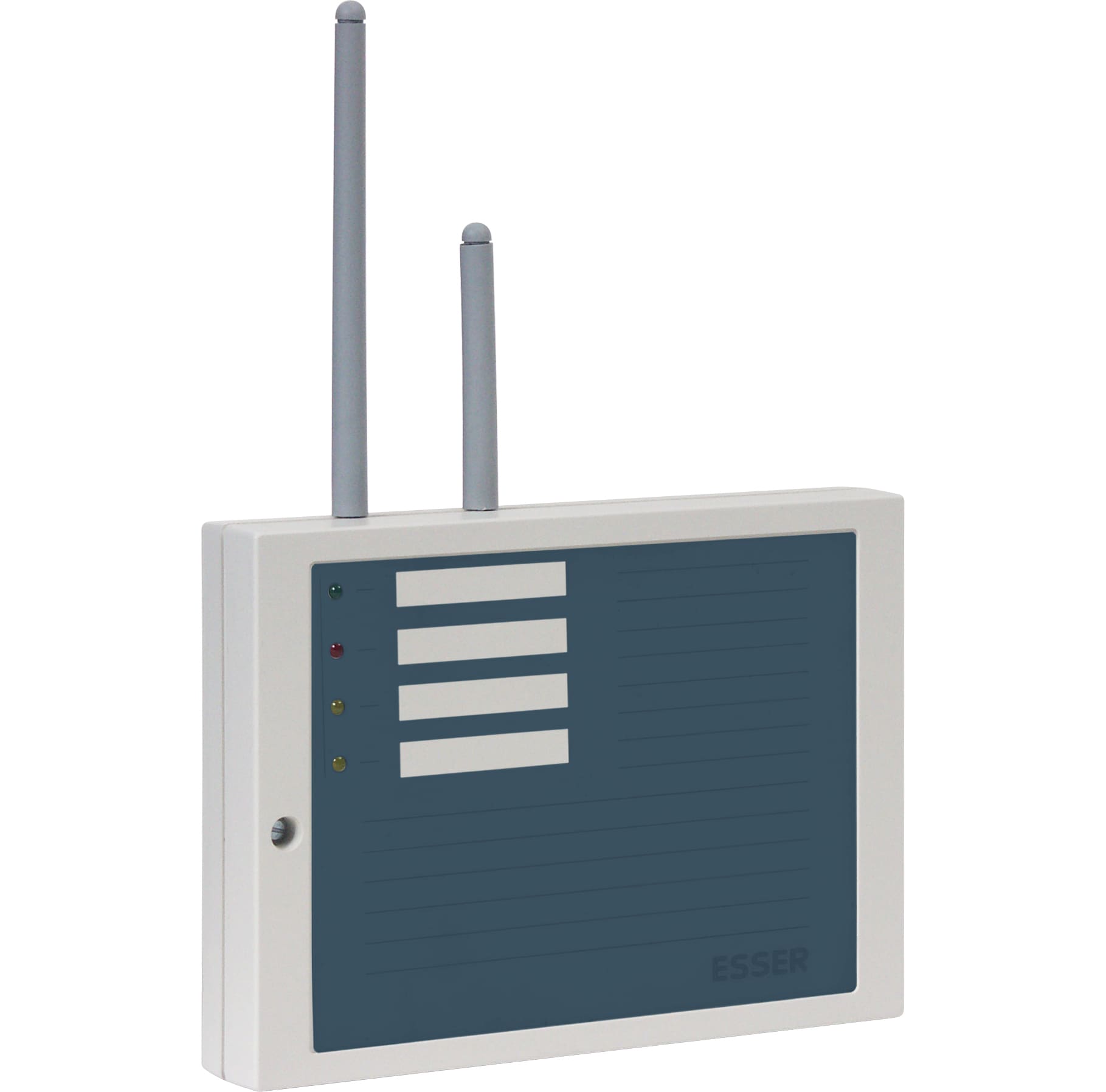

IQ8Wireless transponder for devices, wall mount

805595.10

Approval: VdS

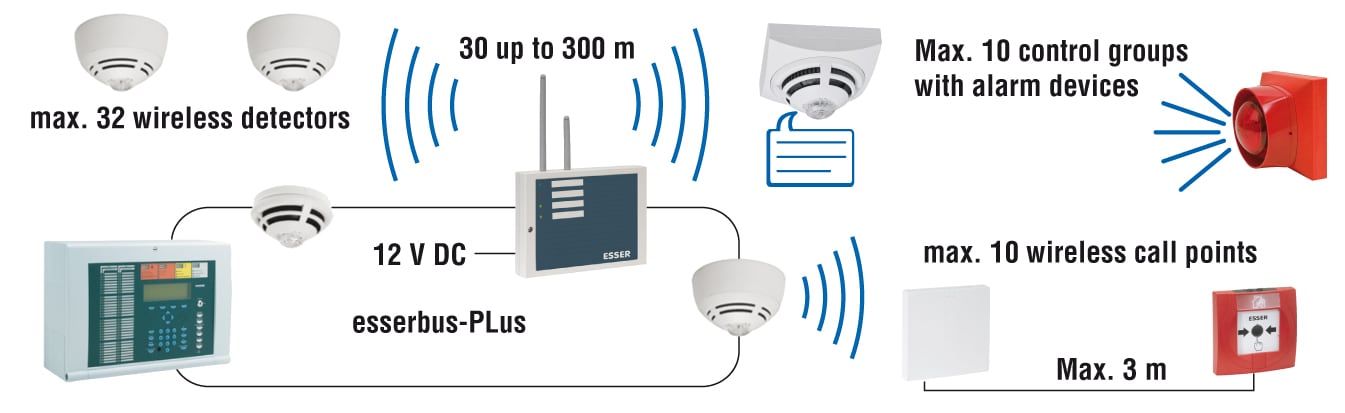

This wireless transponder is designed for wall mounting. The wireless transponder communicates with up to 32 other wireless devices. These can be wireless of various types from intelligent automatic fire detectors or wireless interfaces with manual call points and/or alarm signaling devices of the IQ8-family. Using the System IQ8Control/FlexES Control, the wireless transponder integrates the intelligent automatic detectors (with and without alarm signaling devices), manual call point and alarming device IQ8Alarm in the esserbus / esserbus-PLus via the wireless base and/or wireless interface. The detector base allows esserbus integration of intelligent automatic detectors as bus devices with individual addressing via the transponder. Up to 10 transponders can be operated on one loop. The transponder can be linked with the loop as well as with a conventional detector zone or it can be operated as a stand-alone unit. Potential-free outputs for common fault and common fire are available. For system 8000 the transponder for RF devices can only be connected by using a potential-free relay to 4 IN/2 OUT or 1 IN transponder, because it is not compatible with panel 8000 and it cannot be used as a bus device.

The transponder needs an external supply voltage for operation.
  • RF communication with up to 32 users
  • maximum 32 wireless bases
  • maximum 10 wireless interfaces with IQ8MCP manual call points
  • maximum 10 control groups for wireless interface with IQ8Quad/IQ8Alarm alarm signaling devices
  • esserbus integration of all RF devices as individually addressable users
  • The RF devices can be assigned in up to 32 detector zones
  • Alarm and fault transmission in accordance with EN 54-2
  • Connection to esserbus of IQ8Control and FlexES Control panel as bus device as well as to a conventional detector zones
  • Stand-alone operation
  • Potential-free outputs for common fault and common fire

Additional Information:
The external power supply of the IQ8Wireless transponder can come from the fire alarm control panel or from an external power unit.
The voltage for the wireless transponder can be supplied by the fire alarm control panel or an external power supply. An individual, separately protected supply line must be installed for the voltage supply. The external voltage supply is monitored by the wireless transponder. If the wireless transponder is installed as a device on the IQ8Control/FlexES Control, fire system, analog loop, a disturbance is transmitted to the fire detection control unit via the loop and is indicated there.
Alarm current @ 12 V DC approx. 18 mA
Alarm current @ 24 V DC approx. 10 mA
Application temperature -5 °C ... 55 °C
Operating voltage 9 ... 30 V DC (via loop)
CE certificate 0786-CPD-20621
External power supply 12 ... 24 V DC
Color white, similar to RAL 9010
Frequency band 1 433 MHz with 16 channels
Frequency band 2 868 MHz with 7 channels
Housing ASA + PC
Weight g approx. 250 g
Contact load relay 30 V DC/1 A
Storage temperature -10 °C ... 60 °C
Range outside max. 300 m
Range inside max. 30 m
Air humidity < 95 % (non condensing)
Quiescent current @ 12 V DC approx. 17 mA
Quiescent current @ 24 V DC approx. 9 mA
Type of protection IP 42
Specification EN 54-17:2005/-18:2005/-25:2008
Data transmission speed 19,2 Kbit/s
VdS class F
VdS-Nr G 205113

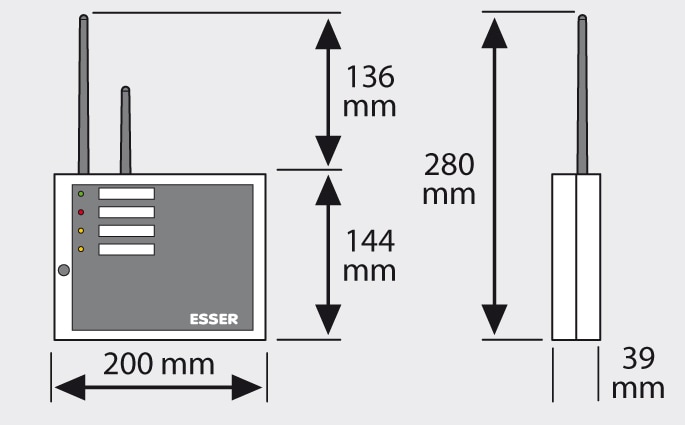

Dimensions W: 200 mm H: 280 mm D: 39 mm (with detector H: 88 mm)
Declaration of Performance DoP-20621130701
