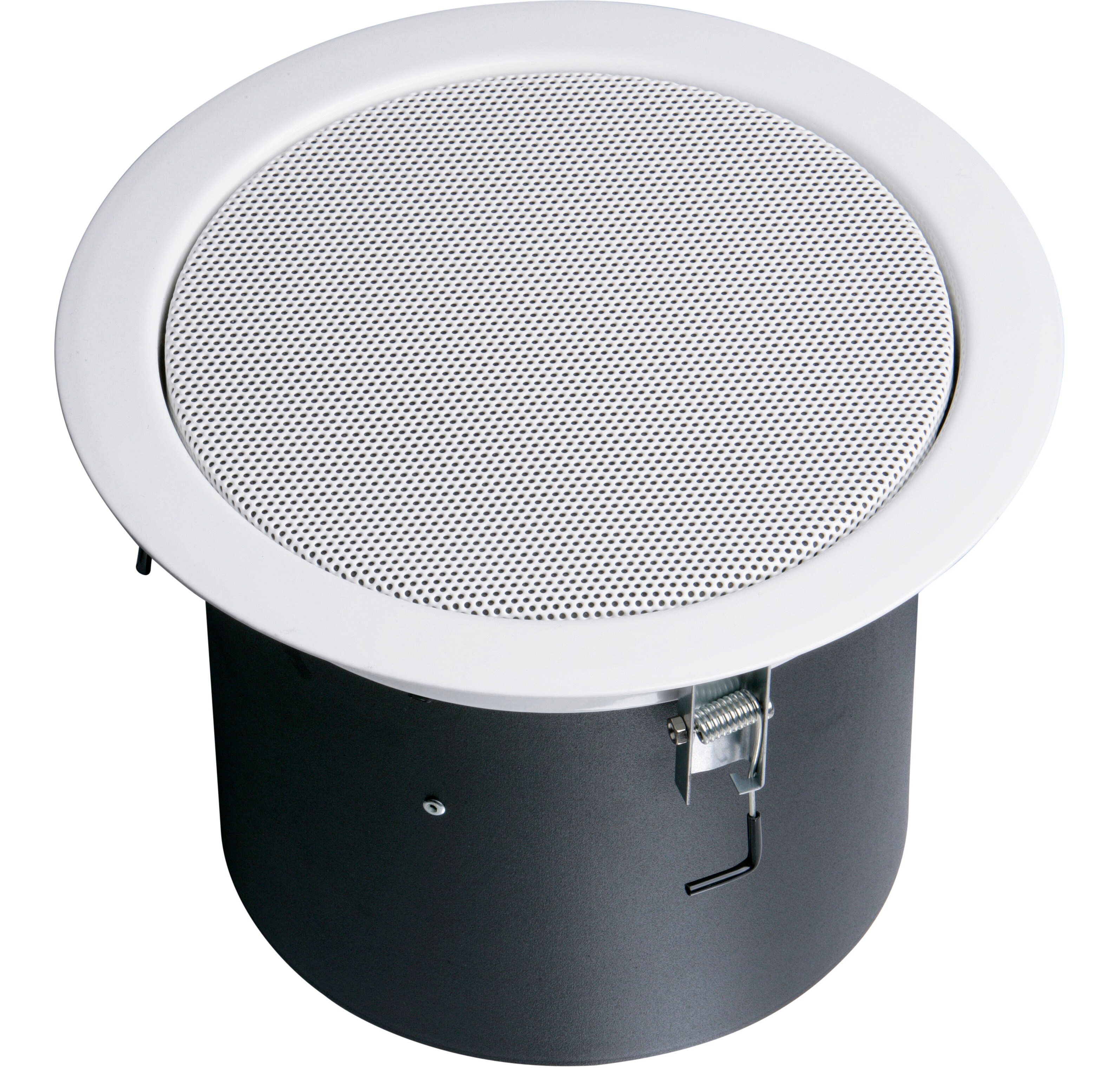

10 W 8" ceiling loudspeaker EN 54, metal

582402

Approval: EN 54-24, 1438/CPD/0233

Modern ceiling mount loudspeakers in plastic coated metal work with high efficiency and moisture proof broadband loudspeaker chassis, certified as per EN 54-24.
DL 10-200/T-EN 54 (200 mm Chassis) has maximum power of 20 W and can be adjusted to 6 W, 10 W or 1.5 W if required. Spring loaded connector with cropped leg spring, a high clamping force, and short tension distance enables a quick and easy mounting. A smart inner ring mounting prevents the grille from collapsing even under heavy load due to environmental influences. For additional protection, this EN 54-24 ceiling mount loudspeaker is assembled with ceramic clamp and thermal protection as well as equipped with a fire dome. It has PG16-cable outlet and a blind cover. The fire dome prevents the suction effect of the chimney at the suspended ceiling in case of fire, after possible burning of the loudspeaker membrane.
Rated Power
10 W
Transformer power taps
10 / 6 / 3 / 1,5 W
Sensitivity EN 54-24, 1 W / 1 m
93.9 dB
Sensitivity EN 54-24, max 1 m
103.4 dB
Transmission range
243 ... 19700 Hz (-10 dB)
Dispersion angle
178° @ 1kHz
Ambient temperature
-20 °C ... 80 °C
Color
white, similar to RAL 9010
Weight
approx. 2.1 kg
Cut-out size
(Ø min.) 238 mm
Dimensions
Ø: 268 mm D: 217 mm
Declaration of Performance
001-13
