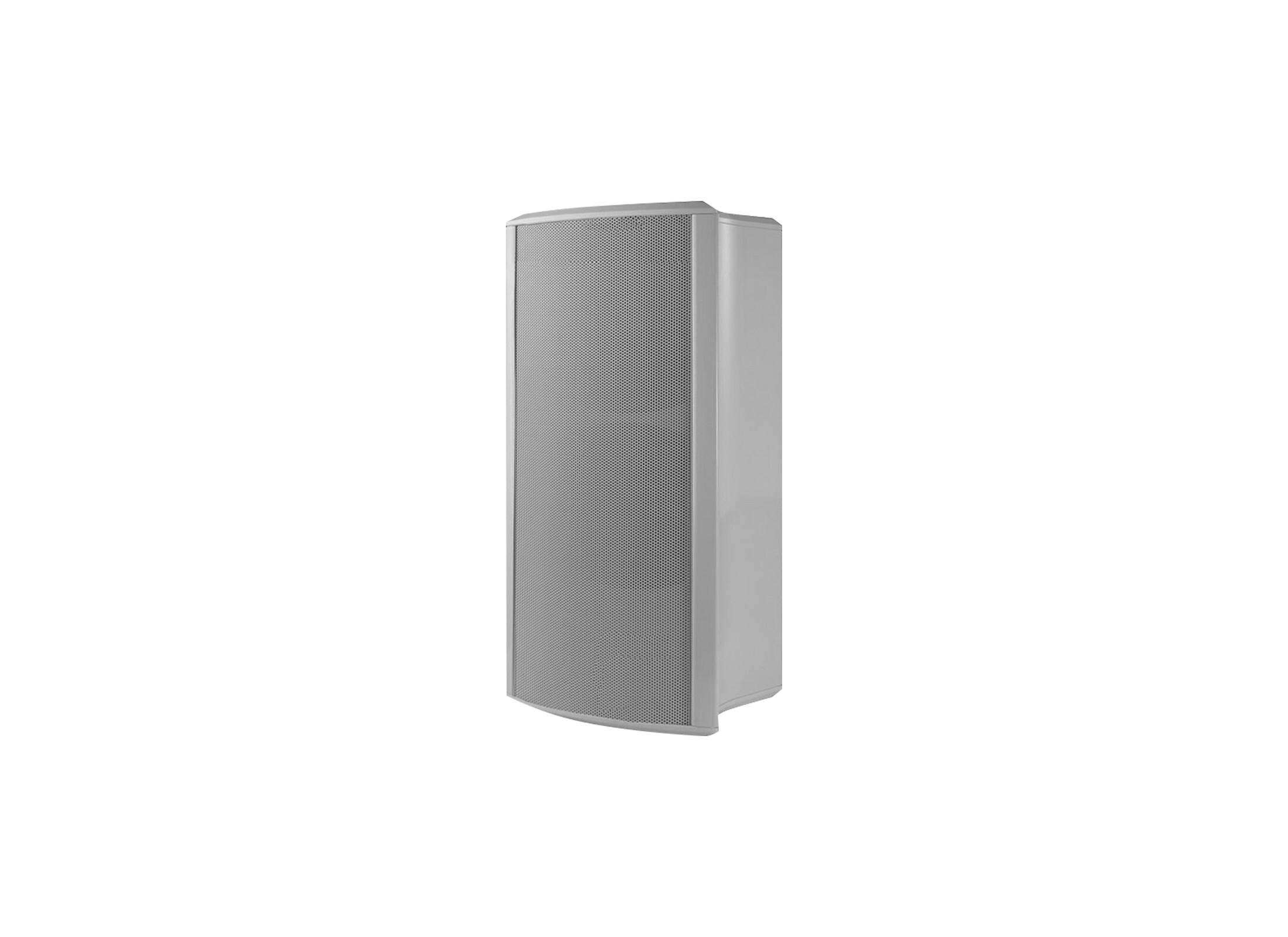

20 W column loudspeaker EN 54, metal

582476

Approval as per EN 54-24, 0359/CPD/00456
The 20 W column loudspeaker has a broad frequency range and a high sound pressure level. This guarantees an accurate and intelligible transmission of the evacuation message, as well as excellent sound reproduction. It can be used indoors as well as outdoors, in dry as well as in humid surroundings. Due to its flat design and the white coating, the loudspeaker can be easily integrated in hotels, conference rooms, cinemas, factories, trade fair halls and other buildings. The loudspeaker complies with standard BS 5859 Part 8, and is certified in accordance with EN 54 Part 24.

The 20 W column loudspeaker has a broad frequency range and a high sound pressure level. This guarantees an accurate and intelligible transmission of the evacuation message, as well as excellent sound reproduction. It can be used indoors as well as outdoors, in dry as well as in humid surroundings. Due to its flat design and the white coating, the loudspeaker can be easily integrated in hotels, conference rooms, cinemas, factories, trade fair halls and other buildings. The loudspeaker complies with standard BS 5859 Part 8, and is certified in accordance with EN 54 Part 24.
Scope of Delivery:
Wall mount included.

Delivery time on request.

Ambient temperature
-25 °C ... 55 °C
Storage temperature
-40 °C ... 70 °C
Rated Power
20 W
Transformer power taps
20 / 10 / 5 / 2.5 W
Type of protection
IP 66
Material
Aluminum
Air humidity
< 95 % (non condensing)
Color
white, similar to RAL 9003
Weight
approx. 3.75 kg

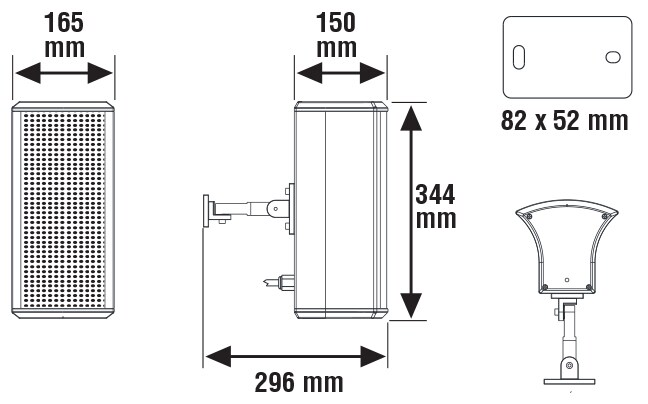

Dimensions
W: 165 mm H: 344 mm D: 150 mm
Rated impedance 0,5 / 1 / 2 / 4 kΩ
Sensitivity EN 54-24, 1 W / 1 m 91 dB
Sensitivity EN 54-24, max 1 m 104 dB
Transmission range 300 ... 15000 Hz (-10 dB)
Dispersion angle 146° (H) / 87° (V) @ 1 kHz
Air humidity < 95 %
Declaration of Performance CPR-DoP-2014003
