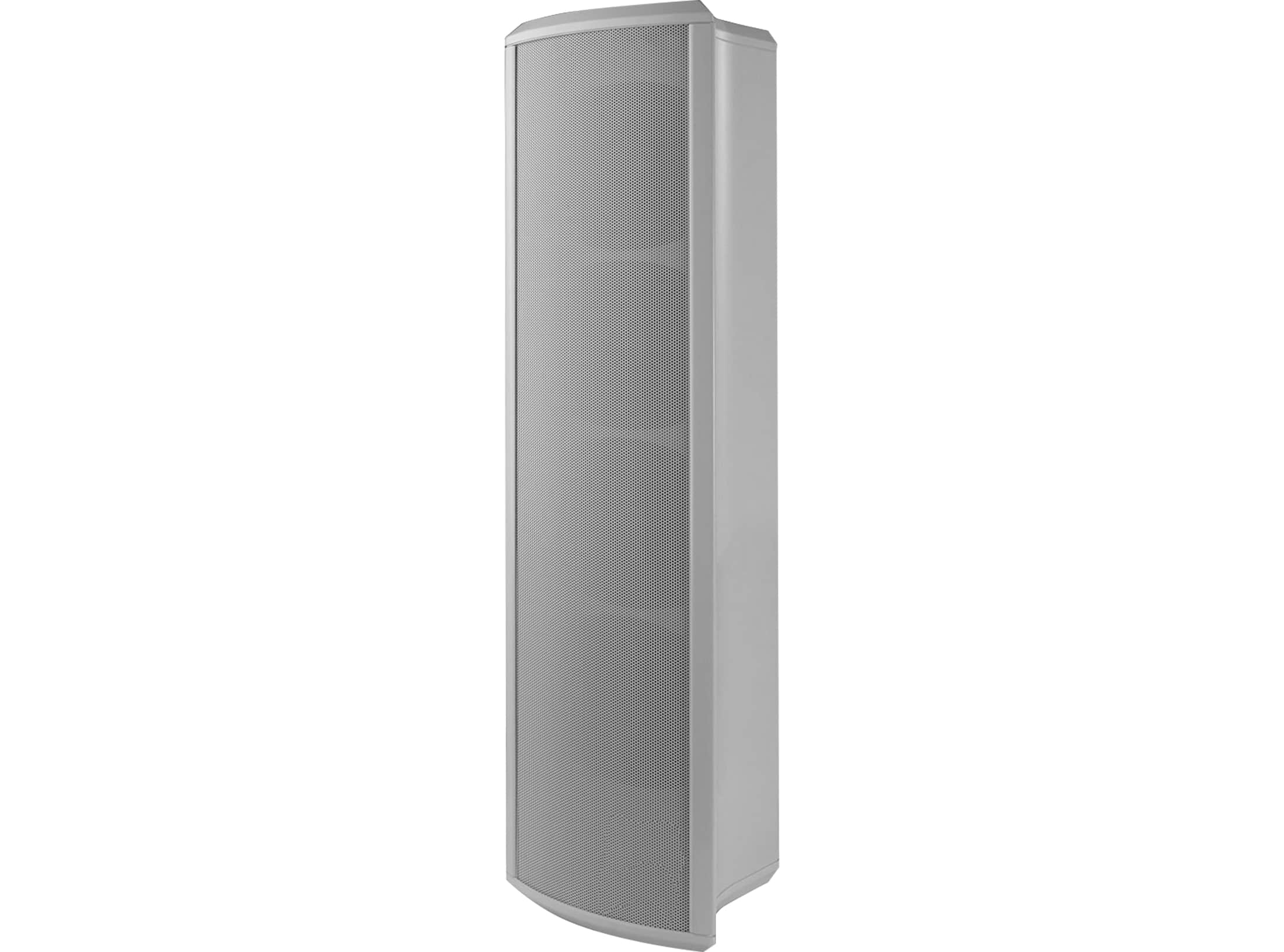

40 W column loudspeaker EN 54, metal

582477

Approval as per EN 54-24, 0359/CPD/00455
The 40 W column loudspeaker has a broad frequency range and a high acoustic pressure level. This guarantees an accurate and intelligible transmission of the evacuation message, as well as excellent sound reproduction. It can be used indoors as well as outdoors, in dry as well as in humid surroundings. Due to its flat design and the white coating, the loudspeaker can be easily integrated in hotels, conference rooms, cinemas, factories, trade fair halls and other buildings. The loudspeaker complies with standard BS 5859 Part 8, and is certified in accordance with EN 54 Part 24.


The 20 W column loudspeaker has a broad frequency range and a high sound pressure level. This guarantees an accurate and intelligible transmission of the evacuation message, as well as excellent sound reproduction. It can be used indoors as well as outdoors, in dry as well as in humid surroundings. Due to its flat design and the white coating, the loudspeaker can be easily integrated in hotels, conference rooms, cinemas, factories, trade fair halls and other buildings. The loudspeaker complies with standard BS 5859 Part 8, and is certified in accordance with EN 54 Part 24.
Scope of Delivery
Wall mount included.

Delivery time on request.

Ambient temperature
-25 °C ... 55 °C
Storage temperature
-40 °C ... 70 °C
Rated Power
40 W
Transformer power taps
40 / 20 / 10 / 5 W
Type of protection
IP 66
Material
Aluminum
Air humidity
< 95 % (non condensing)
Color
white, similar to RAL 9003
Weight
approx. 5.75 kg

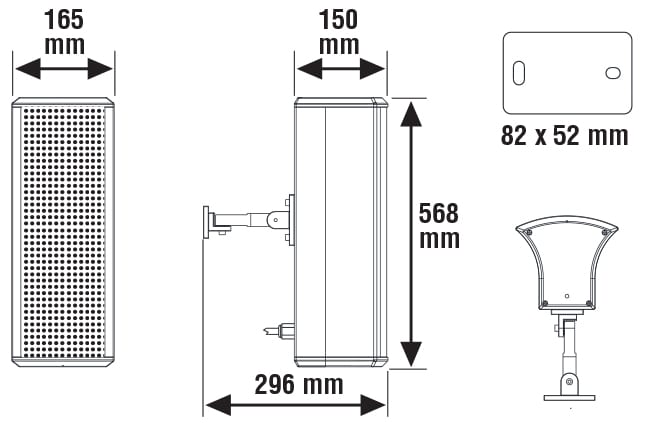

Dimensions
W: 165 mm H: 568 mm D: 150 mm
Rated impedance 0,25 / 0,5 / 1 / 2 kΩ
Sensitivity EN 54-24, 1 W / 1 m 94 dB
Sensitivity EN 54-24, max 1 m 110 dB
Transmission range 300 ... 15000 Hz (-10 dB)
Dispersion angle 147° (H) / 48° (V) @ 1 kHz
Declaration of Performance CPR-DoP-2014003
