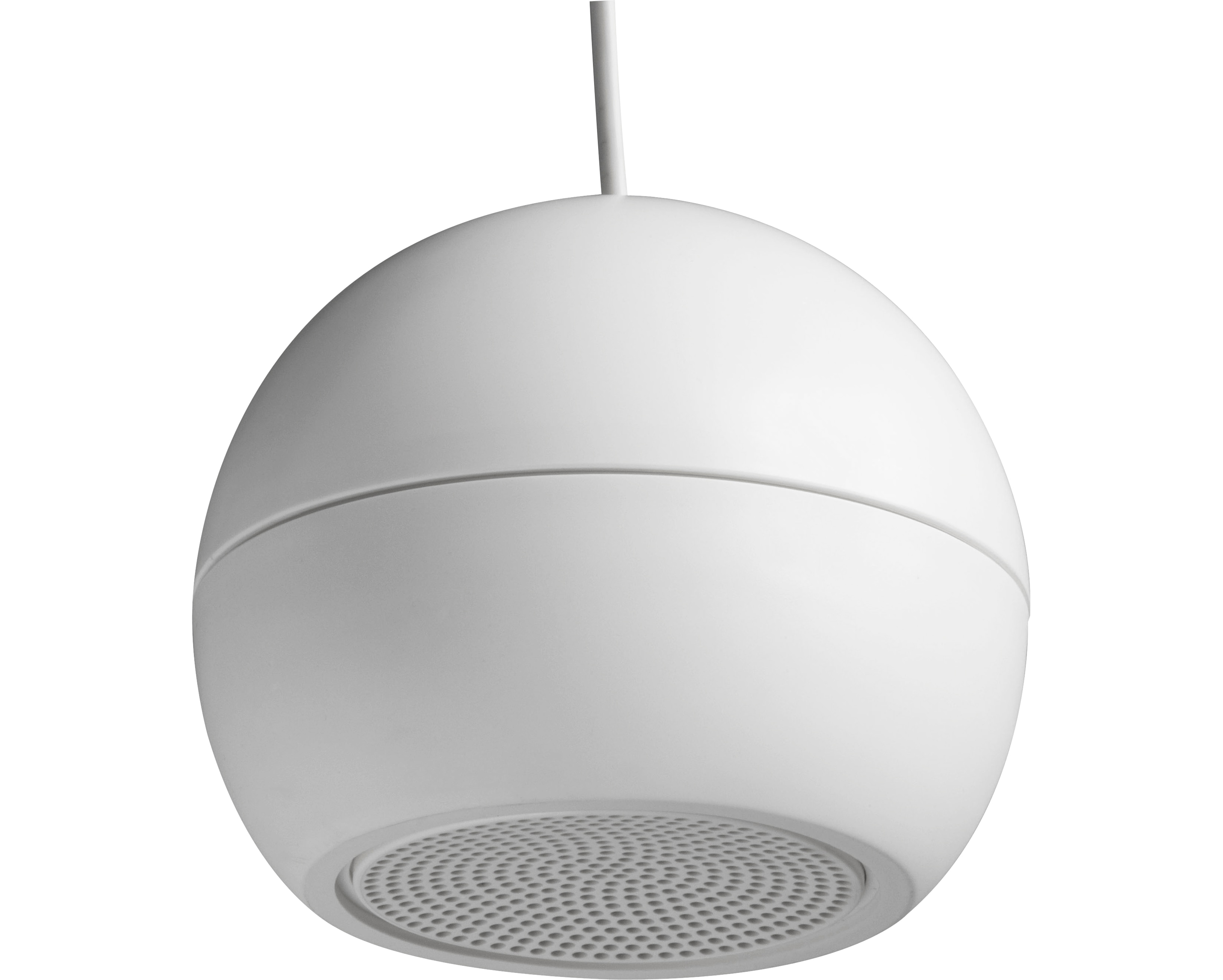

16 W spherical speaker EN 54, ABS

582460

The compact DL-K 16-130/T-EN 54 is equipped with a corrosion-resistant 130 mm full range speaker chassis with ceramic terminal and thermal fuse. The 16 W high ball speaker certified to EN 54-24 with ABS housing (UL94 HB) offers a high sound pressure level and a balanced frequency response.
The compact DL-K 16-130/T-EN 54 is equipped with a corrosion-resistant 130 mm full range speaker chassis with ceramic terminal and thermal fuse. The 16 W high ball speaker certified to EN 54-24 with ABS housing (UL94 HB) offers a high sound pressure level and a balanced frequency response.
The compact DL-K 16-130/T-EN 54 is equipped with a corrosion-resistant 130 mm full range speaker chassis with ceramic terminal and thermal fuse. The 16 W high ball speaker certified to EN 54-24 with ABS housing (UL94 HB) offers a high sound pressure level and a balanced frequency response.

Scope of Delivery
Pre-mounted, 5-core connection cable, length 4,50 m
Including canopy

Additional Information:
Delivery time on request.

Ambient temperature
-20 °C ... 80 °C
Rated Power
16 W
Transformer power taps
16 / 8 / 4 W
Type of protection
IP 35
Color
white, similar to RAL 9010
Weight approx. 1.5 kg
Dimensions
Ø: 185 mm D: 157 mm
Sensitivity EN 54-24, 1 W / 1 m 85 dB
Sensitivity EN 54-24, max 1 m 97 dB
Transmission range 130 ... 13300 Hz (-10 dB)
Dispersion angle 196° @ 1kHz
Declaration of Performance 005-13
