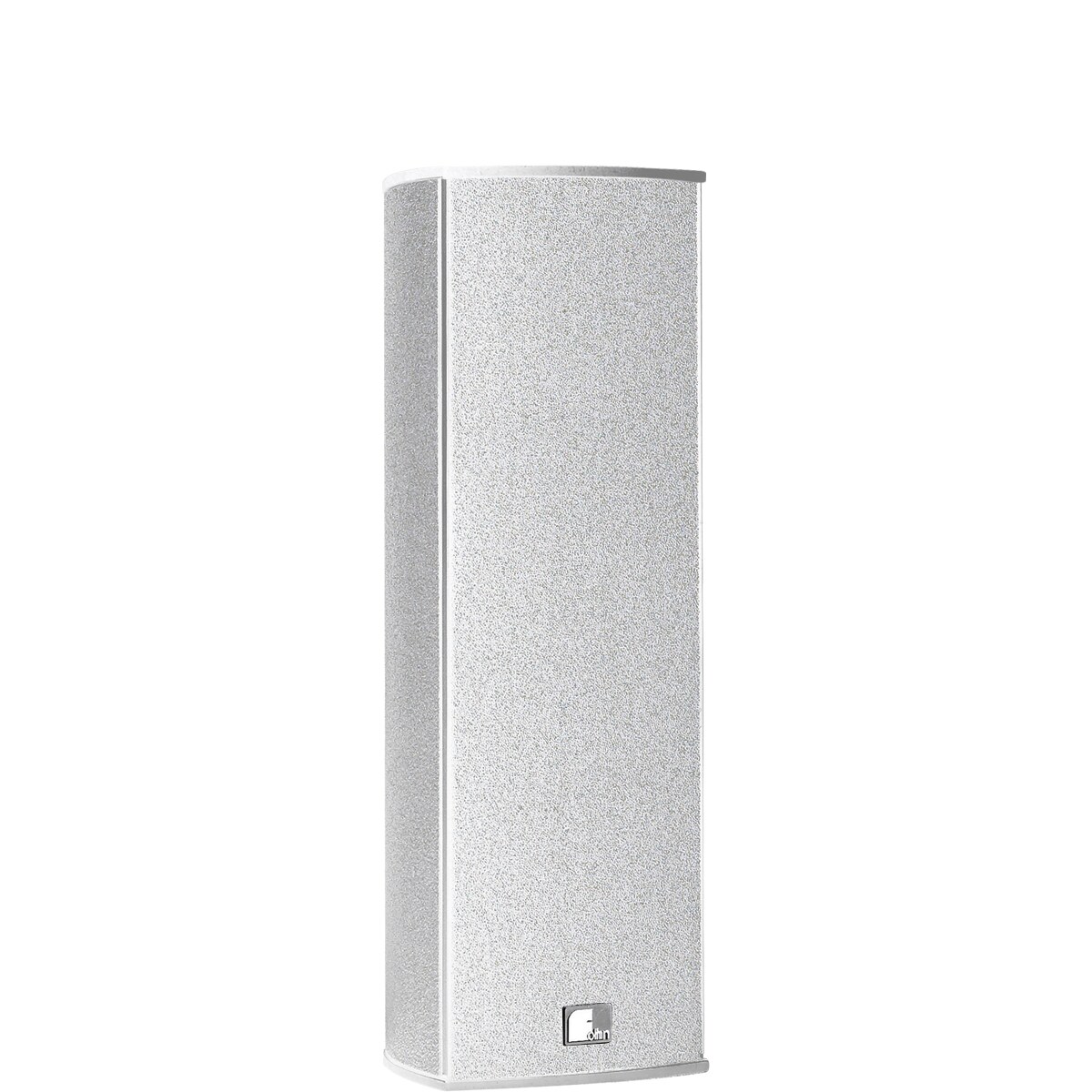

Linea LEN-60 EN54-24, white

582652.W

Passive 100 V loudspeaker, with weatherproof aluminium housing, designed for use with voice alarm systems - certified according to EN 54-24, Type B, equipped with six high-quality 4” drivers with treated cones for optimum efficiency in speech and voice alarms.
  • EN 54-24 certified, 100 V loudspeaker for use with voice alarm systems
  • suitable for both indoor and outdoor use
  • exceptionally even sound dispersion
  • SIDE LOBE FREE – passive realization
  • equipped with high performance speakers
  • excellent speech intelligibility and sound quality
  • a long reach
  • weatherproof without requiring additional protection (protection class IP54 in accordance with IEC 529 / EN 60529)
  • ball impact resistant front grille made from galvanised sheet steel
SPL Pmax / 1 m
112 dB
Dispersion angle 130° (H) x 25° (V) nominal; 360° (H) x 90° (V) @500 Hz;
190° (H) x 40° (V) @ 1000 Hz;
120° (H) x 25° (V) @ 2000 Hz;
95° (H) x 13° (V) @ 4000 Hz
Housing weatherproof aluminium housing, powder coated, steel bracings
Color white, similar to RAL 9016, powder-coated
Weight approx. 7.5 kg

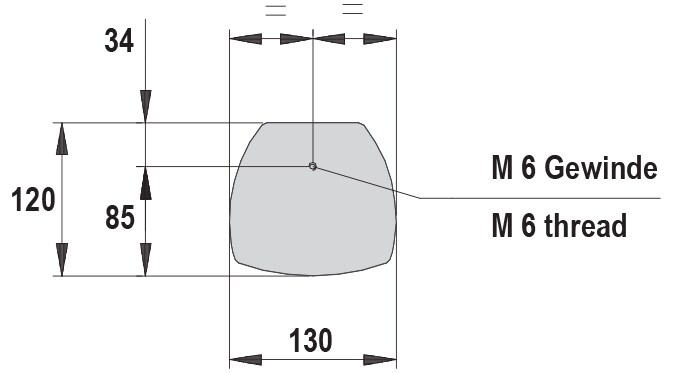

Dimensions W: 130 mm H: 640 mm D: 120 mm
582614.W
