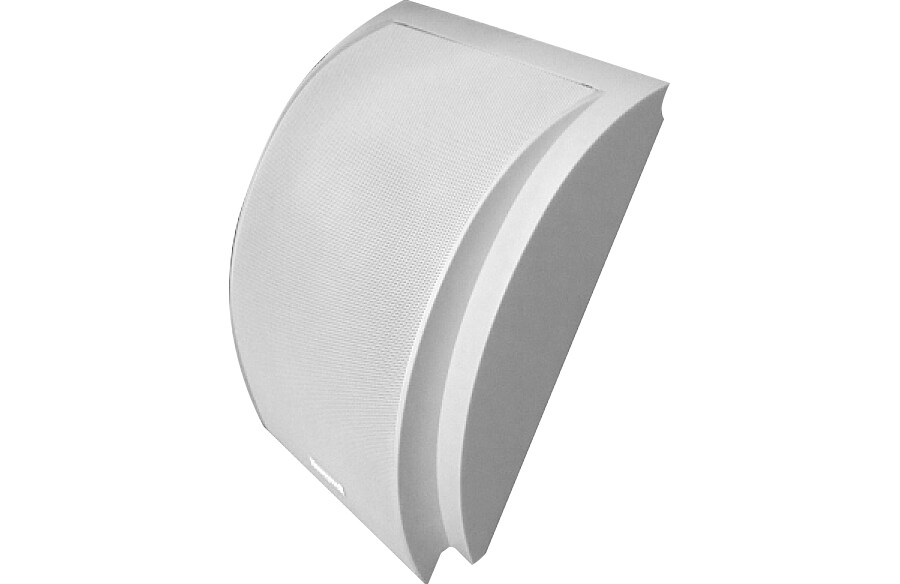

10 W cabinet loudspeaker, ABS

581276

The Cabinet loudspeaker is suitable for various applications, such as shopping centers, supermarkets, educational institutions, office buildings, hotels, and restaurants. It stands out due to its high sound pressure and its wide frequency rang, and offers excellent voice and music reproduction. Available output settings are 5 W and 10 W. A spring terminal on the back side makes cable connection easier. The elegant design in shock-resistant ABS material is kept in discrete white. The loudspeaker features an extraordinary bass response. The loudspeaker is CE and RoHS compliant.

Additional Information:
Delivery time on request.

Ambient temperature
-25 °C ... 55 °C
Storage temperature
-40 °C ... 70 °C
Rated Power
10 W
Transformer power taps 10 / 5 W
Material
ABS
Air humidity
< 95 %
Color white, similar to RAL 9003
Weight approx. 1.6 kg
Dimensions W: 345 mm H: 240 mm D: 100 mm
Rated impedance 1 / 2 kΩ
SPL 1 W / 1 m 92 dB
Transmission range 150 ... 17000 Hz (-10 dB)
Dispersion angle 170°

Promotional - Product Data Sheets

TypeNameSize
Product data sheet 581276 (L-PWP10A) 10 W Cabinet Loudspeaker Version: 03.2015 834 KB
