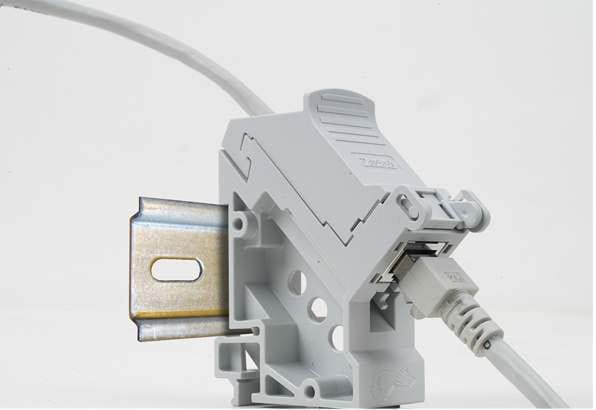

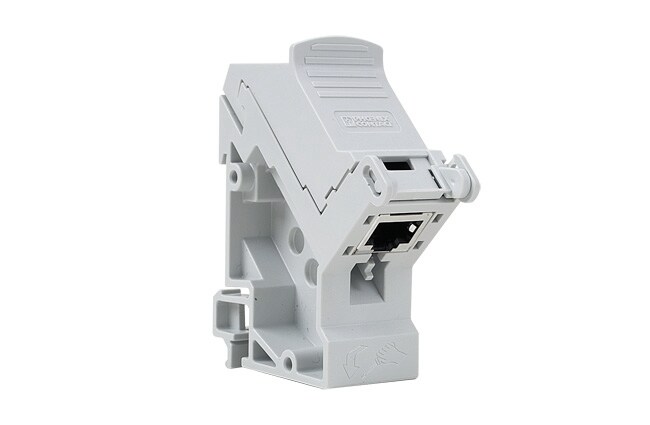

Peripheral clip for top hat rail

581340

Adapter box to connect peripheral components , such as for example analog microphones, to the VARIODYN® D1. The incoming installation cable is connected directly to the installation box.

Also, the cable shield of the installation cable can be connected in the adapter box.

The output of the adapter box is connected directly via a pluggable power cable (Item. No 583466, 583467 or 583469) with the corresponding input of the VARIODYN® D1. The pin assignments for the individual applications are listed in the VARIODYN® D1 installation instructions (Item. No. 798663).
Additional information:

Please order a suitable CAT5 cable from our product portfolio (e.g. Part No. 583466A)
