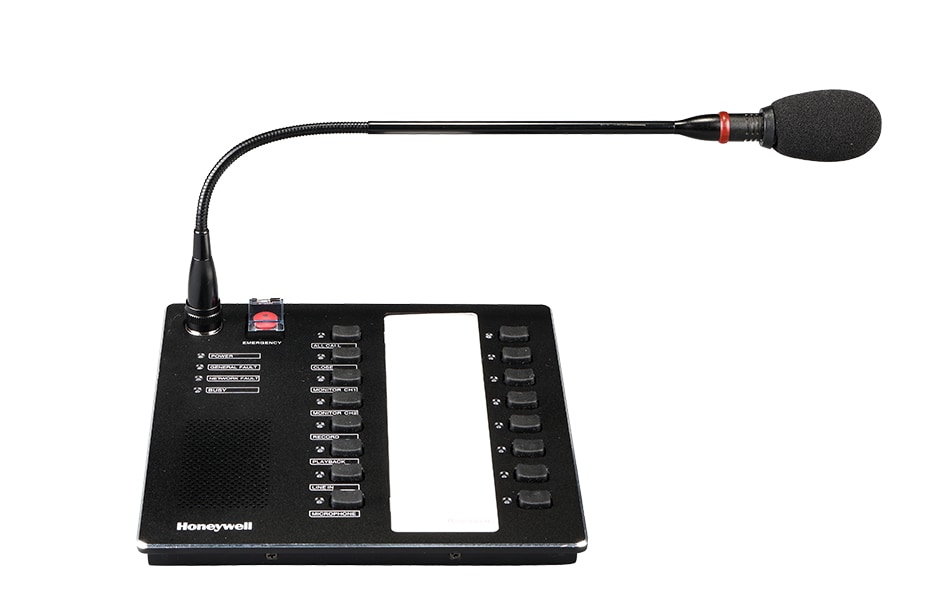

INTEVIO Remote Call Station

RK-MIC

Voice Alarm EN54-16 Certified
Safety CE/CB Certified

RK-MIC is used to perform various broadcasts and live announcement in zones. This unit has programmable buttons, users may easily conduct operations, such as paging, BGM broadcast, business broadcast, voice alarm, volume control, recording, monitoring, etc. If necessary, extension key modules can be connected to RK-MIC for more buttons.
  • Supports gooseneck or PTT microphone for live broadcast
  • Built-in loudspeaker to monitor CH1/CH2 audio
  • Temporary recording function
  • Line input interface to connect to external BGM audio source
  • The volume of microphone, line input and loudspeaker can be set via the volume regulators at the rear panel
  • 8 programmable buttons, be able to be configured by software
  • Supports extension key modules as required
  • Automatical supervision of microphone and communication
  • The distance between RK-MCU and RK-MIC can be up to 600 meters via twisted-pair cable using an additional power supply
  • Call station can be powered by RK-MCU (max. 400m distance)
  • Maximum 6 remote call stations can be connected to the system.

Power supplyDC 24 VRelative humidity <95%, without condensing
Operating temperature -10°C ... +55 °C
Storage temperature -40°C ... +70 °C
Dimension W: 200 mm H: 46.5 mm D: 200 mm

Net weight1.4 kgPower consumption10 W

  • 24V DC Power Adapter (Optional) RK-MADP
  • Extension Keypad HMC-K4
  • Extension Keypad HMC-K8
  • HN-PTT Handmicrophone
  • HMC-K4 Call station keypad 4 emergency buttons
  • HMC-K8 Call station keypad 8 buttons
  • X-NPMS-R Rack Mounted Panel for Call station
