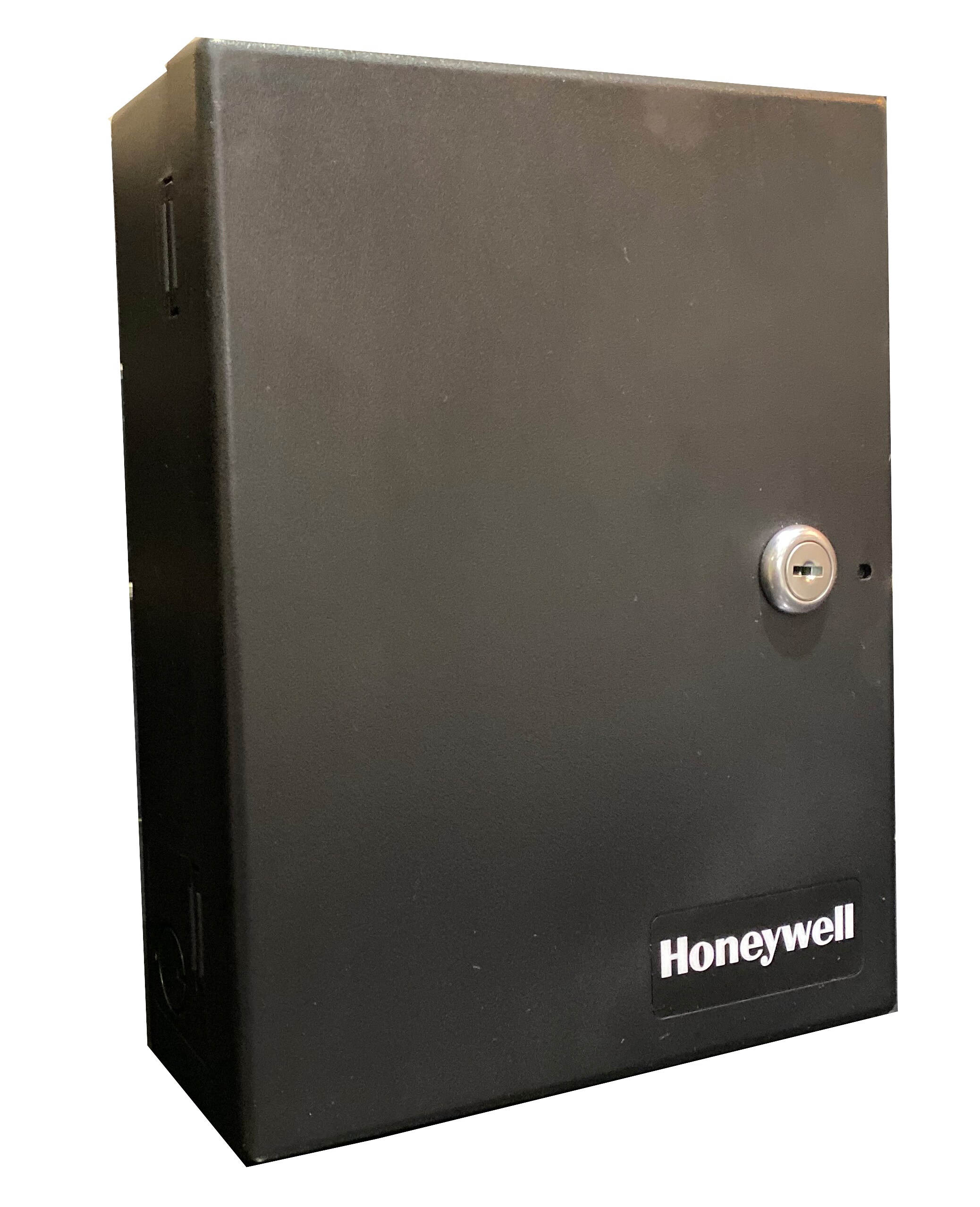

Connected Life Safety Services (CLSS) Gateway

HON-CGW-MBB

CLSS is a cloud-based platform that supports professionals in system maintenance and enables users to remotely monitor and manage fire alarm systems. The CLSS Gateway is used to connect ESSER by Honeywell fire alarm systems to the CLSS Cloud. The connection to the CLSS Cloud can be established via LAN, WLAN (internet connection required) or cellular (optional module).

• Connects directly to Honeywell Fire Alarm Control Panels (FACP) or a network of FACPs
• Easy connection between the Gateway and CLSS CheckPoint mobile application
• BlueTooth® mobile pairing for Gateway Configuration and Control capability
• Can be used for portable or permanently installed applications
Operating temperature
-10 °C ... + 60 °C
Operating air humidity
1 % ... 94 % (without condensation)
Rated Input voltage
12 V DC ... 32 V DC
Current consumption
150 mA @ 24 V DC (incl.Mobile and radio connections)
Dimensions
H: 260 mm W: 203 mm D: 95 mm
Weight
0,73 kg
  • CCM-EU Optional LTE-Cellular-Modul for installation in the CLSS Gateway
