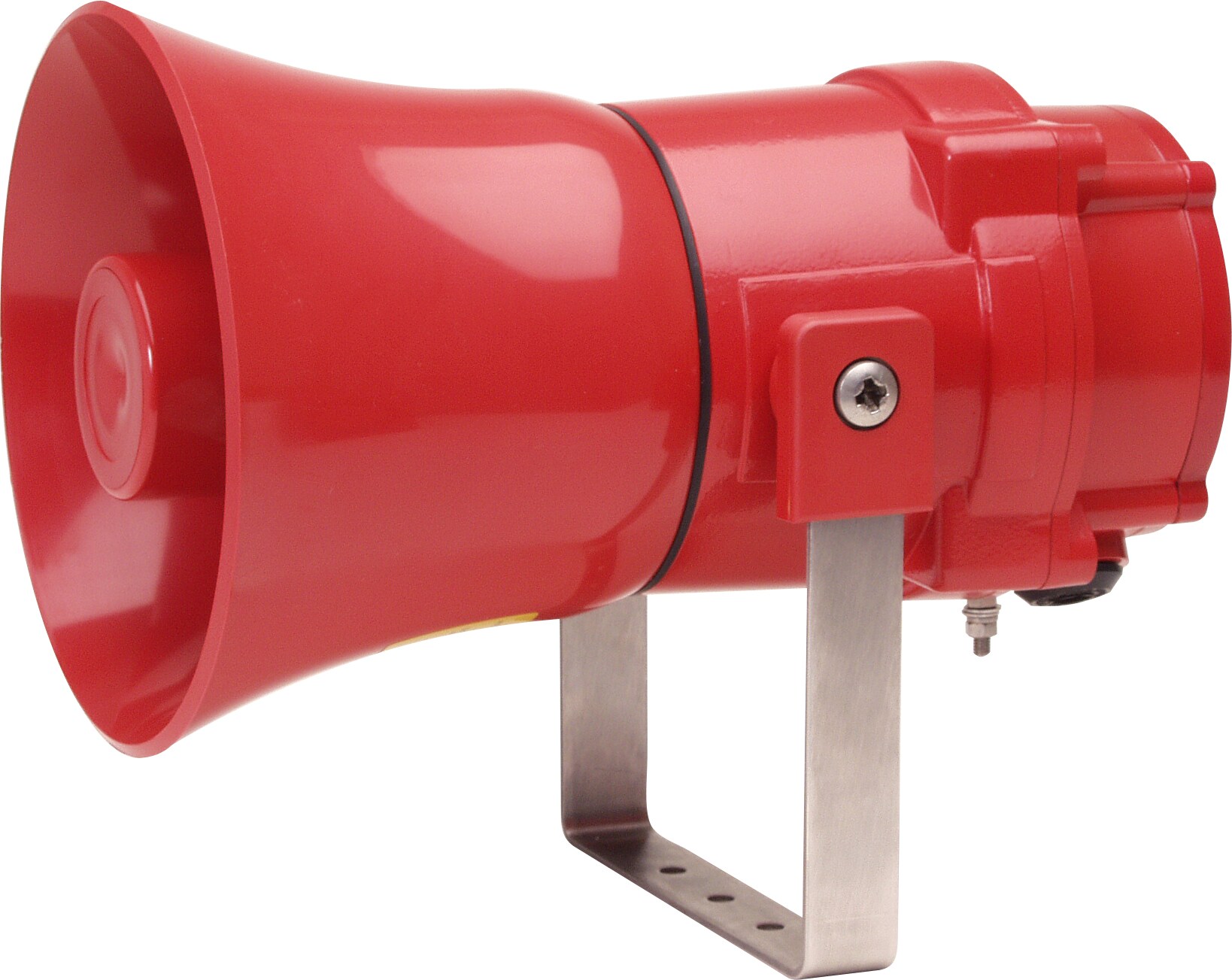

Ex sounder, 12 V DC

766253

The ex sounder is especially suitable for application in hazardous areas at industrial workplaces category 2G or 3G (formerly zones 1 and 2) and complies with the technical requirements of DIN 33404 - 3. The robust aluminum die-cast housing is resistant to chemicals and environmental factors.
  • 32 tone signals selectable
  • Quartz controlled sound synchronization
  • ATEX approved
  • LM6 aluminum die-cast housing
  • Self-extinguishing aluminum cone, similar to UL 94 VO

Additional Information:
According to the conformity declaration, the alarm devices can be used in zones 2 and 22.
See tone table on our download website.
EC-type examination certificate KEMA 99ATEX 7906
Explosion protection II 2G Ex de IIC T4
Color red, similar to RAL 3000
Weight kg approx. 3.16 kg
Storage temperature -50 °C ... 70 °C
Material aluminum die cast LM6
Air humidity < 90 % (non-condensing)
Type of protection IP67
Current consumption typ. 195 mA;
Current consumption @ 12 V DC approx. 195 mA
Ambient temperature -50 °C ... 55 °C
Dimensions ø: 181 mm L: 263 mm
Operating Voltage 12 V DC
Sound Level 110 dB(A) ± 3 dB @ 1 m (depending on signaling
type)
