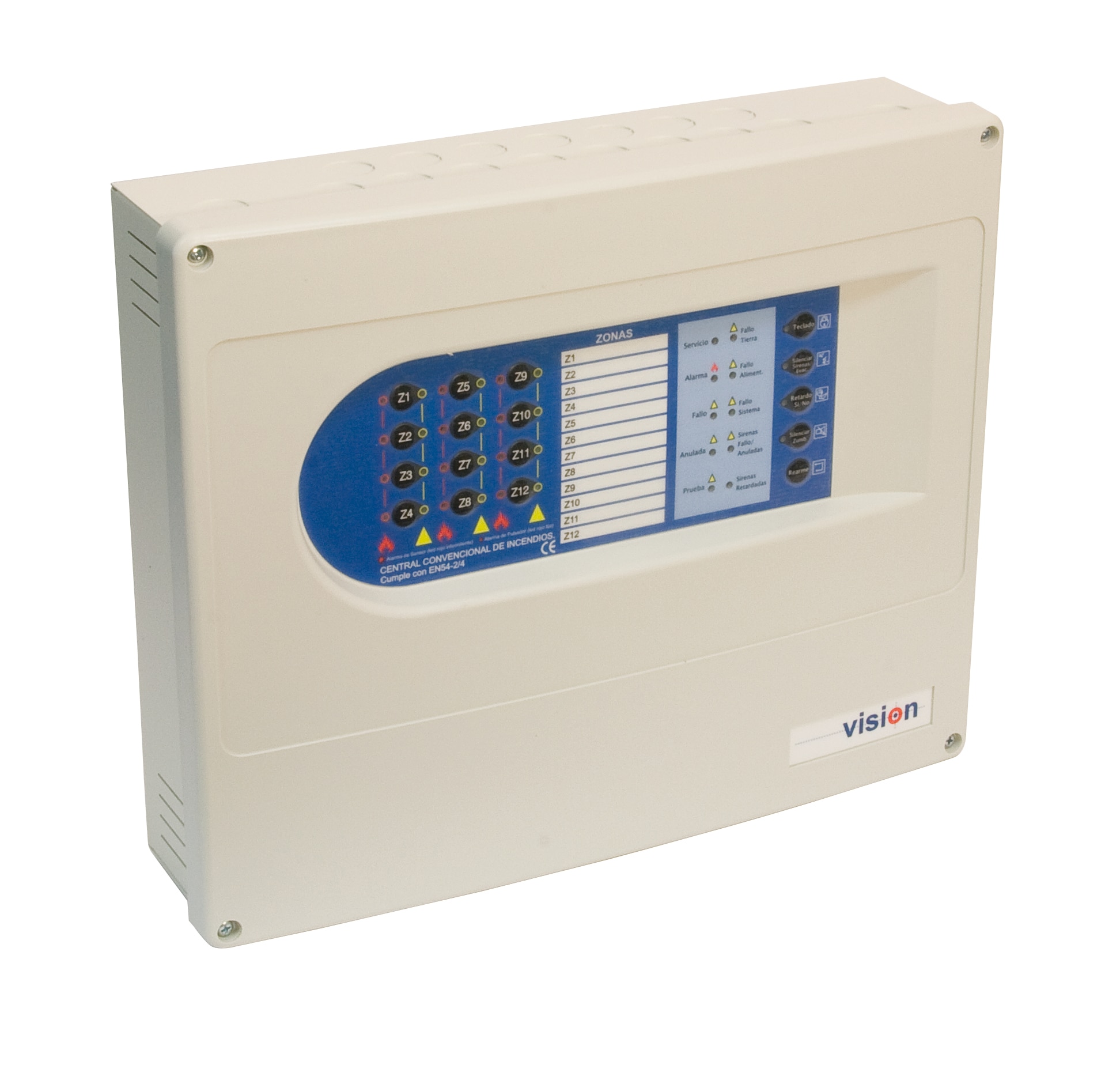

Morley-IAS Conventional Panel with 2 Zones, non EN54-13

VSN2-LT

The VSN-LT Conventional panel has been conceived and designed for the installation of small and medium-sized fire detection systems in those places where it is necessary to interface with an easy-to use and high-performance central unit. The control panel is accessible and configurable by entering a password. The VSN control panel has 4 detection levels that allows to recognize if an alarm comes from a sensor, a button or by an open circuit or a short circuit.

• Microprocessor system
• Zone confiuration: Short-circuit alarm; Alarm memory; Manual / automatic alarm; Coincidence with adjacent areas
• Alarm identification by detector or button
• Day / Night function with delay from 30 to 300 sec.
• Delays disabled by the keyboard (optional)
• Alarm from one detector or from 2 zones in alarm
• 2 monitored sounder outputs with zone activation
• Alarm relay and fault relay
• Auxiliary power supply output (not resettable)l

Power supply	230 Vac ±15%; 50/60 Hz.
Total max. current	2.4 A
Batterv charging voltage	27.3V at 20°C
Battery load current	260 mA max
Main fuse	F4AL 250 V
2 monitored sounder outputs	2 x 250 mA
aux. power supply output	8,5 - 28.5Vdc (24Vdc nominal) / 300 mA (resettable and non-resettable)
Operating temperature	-5 °C to +45 °C
Operating humidity	95% max. RH
Panel sealing	IP30
Dimensions	W: 380 mm H: 315 mm D: 100 mm
Weight (without batteries)	3 Kg
Plug-in Terminals	1,5 mm2 max.
Housing Colour	RAL 9002
Material	ABS/steel
