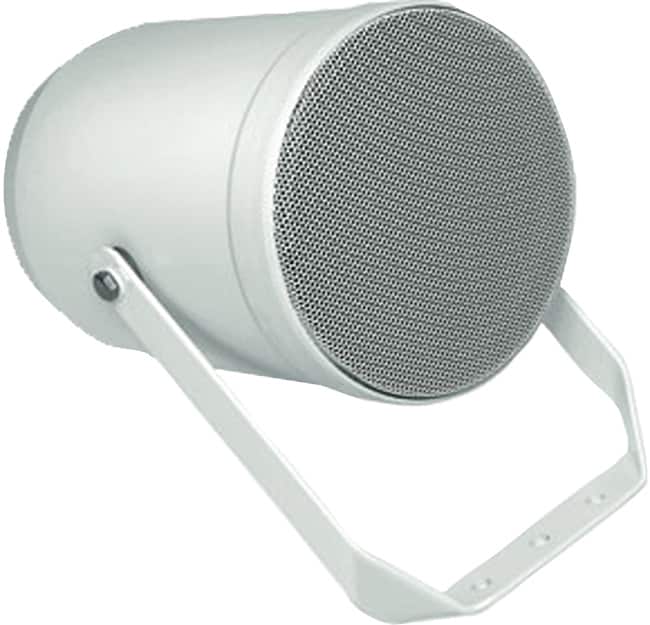

20 W unidirectional sound projector, ABS

581258

Due to its high-quality ABS enclosure and its special mechanical design, this sound projector can be used in places where air humidity and temperatures are high. With its broad frequency range and high sound pressure level, this loudspeaker is eminently suitable for use in train stations, shopping centers, warehouses, etc.

The sound projector is CE and RoHS compliant.
Rated Power
20 W
Transformer power taps 20 / 10 / 5 W
SPL 1 W / 1 m 92 dB
Transmission range 140 ... 20000 Hz (-10 dB)
Dispersion angle 150°
Ambient temperature -20 °C ... 90 °C
Storage temperature -40 °C ... 70 °C
Type of protection IP 55
Color white, similar to RAL 9003
Weight approx. 1.56 kg
Dimensions Ø: 138 mm D: 201 mm

Promotional - Product Data Sheets

TypeNameSize
Product data sheet 581258 (L-PJP20B) 20 W Projection Loudspeaker Version: 12.2014 289 KB
